PETG Natural
Code: 3623/1/1Related products
Product detailed description

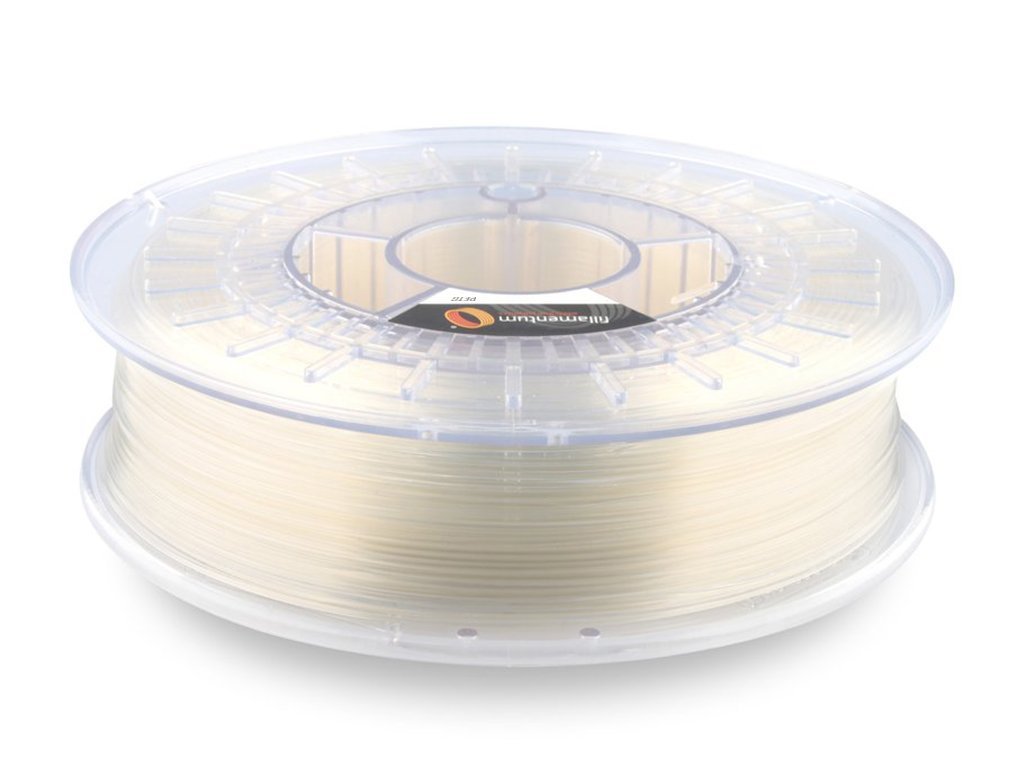

PETG Natural
Filament made of polyethylene terephthalate glycol (PETG) is widely used for 3D printing thanks to its specific properties and easy processing. PETG is an ideal material for prints with practical applications.
Features:
- Low warping and shrinkage
- Great layer adhesion
- High strength & good hardness
- Flexural resistance
- Temperature resistance up to 70 °C
- Low fumes released
- Chemical resistance against water, acids, alkalis, and alcohols
- Transparency and gloss
- Safe for food contact applications according to EU regulation
- Safe for food contact applications according to U.S. FDA regulation (all the color versions comply except "Black" and "Yellow")
- Safe to use in electrical and electronic equipment
- Recyclable & BPA-free & styrene-free
| Working temperature: | 235–255 °C |
| Heated bed: | 65–75 °C |
| Diameter: | 1.75 mm |
| Diameter tolerance: | +/- 0.05 mm |
| Weight: |

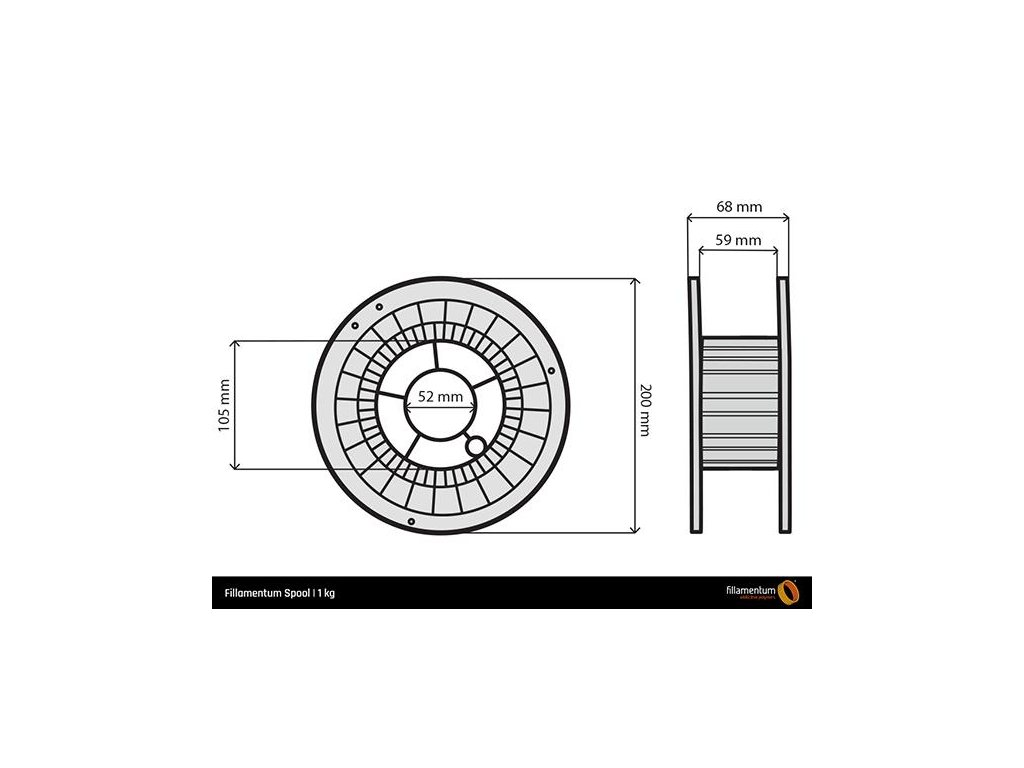

1 kg of filament (+ 250 g spool)
|
| The length of the filament: |
325 m (1.75 mm, 1 kg)
|
| RAL | Pantone | HEX: |
N/A | N/A | N/A
|
Comparison of our copolyester filaments:
| CPE CF112 Carbon | CPE HG100 | PETG | PETG filaments* | |
| Impact resistance | 106 kJ/m2 (unnotched) |
no break (notched) |
85 J/m (notched) |
98–126 J/m (notched) |
| Tensile strength | 52 MPa | 48 MPa | 50 MPa | 26–45 MPa |
| Elongation at break | 8 % | 150 % | 120 % | 58–110 % |
| Hardness | 94 R-Scale | 115 R-Scale | 105 R-Scale | 108 R-Scale |
| Flexural strength | / | 71 MPa | 71 MPa | 54–74 MPa |
| Flexural modulus | / | 1860 MPa | 2150 MPa | 1600–2100 MPa |
| Wear resistance | ★★★★ | ★★ | ★ | ★ |
| Creep resistance | ★★★★ | ★★ | ★ | ★ |
| Heat resistance (HDT) | up to 100 °C | 80 °C | 70 °C | 70 °C |
| Chemical resistance to acids, bases, hydrocarbons |
good | good | poor | poor |
*PUBLICLY ACCESSIBLE INFORMATION FROM OTHER PRODUCERS
The input material was carefully selected to achieve the best processability and final properties. Fillamentum’s products are always produced from the precisely specified type of material, with the highest stability across all the batches. The customers can rely on the best quality at any time they use our filament.
Additional parameters
| Category: | PETG |
|---|---|
| Warranty: | 2 years |
| Material: | PETG |
| Color: | natural |
| Průměr struny: | 1.75 mm |
| Hmotnost návinu: | 1 kg |
| Materiál: | PETG |
| Odstín RAL: | N/A |
| Odstín PANTONE: | N/A |
| Doporučená teplota extruze: | 235 - 255°C |
| Doporučená teplota podložky: | 65°- 75°C |
| Tolerance: | max. ± 0.05 mm |
| Výrobce: | Fillamentum |
| Země původu: | Česká republika |
| Délka návinu: | 325 m (1.75 mm, 1 kg) |
| Barva: | natural |
-
Printing guide (59.2 kB)
-
ROHS English (235.6 kB)
-
Technický list (100.6 kB)
-
Zdraví a bezpečnost (271.2 kB)
-
ROHS (238.9 kB)
