ASA Extrafill Dijon Mustard
Code: 3744/1 3744/2 Choose variantRelated products
Product detailed description
Fillamentum ASA Dijon Mustard
ASA is a styrenic polymer that is ideal for the production of the first functional samples before serial production for functional prototyping, manufacturing tools, but also for the production of goods for everyday usage, especially for outdoor applications. It can withstand high long-term heat exposure and exposure to UV light.
Features:
- Low levels of yellowing
- Excellent weather and UV light resistance
- Retention of physical features such as color and mechanical properties
- Low moisture absorption
- Impact resistance
- Higher resilience than ABS
- Recyclable
- Chemical resistance against alkalis, alcohols, oils, greases, ozone, and water
- Long-term dimensional stability
- Low density
- Safe to use in electrical and electronic equipment
| Working temperature: | 240–255 °C |
| Heated bed: | 80–105 °C |
| Diameter: | 1.75 mm and 2.85 mm |
| Diameter tolerance: | +/- 0.05 mm |
| Weight: |

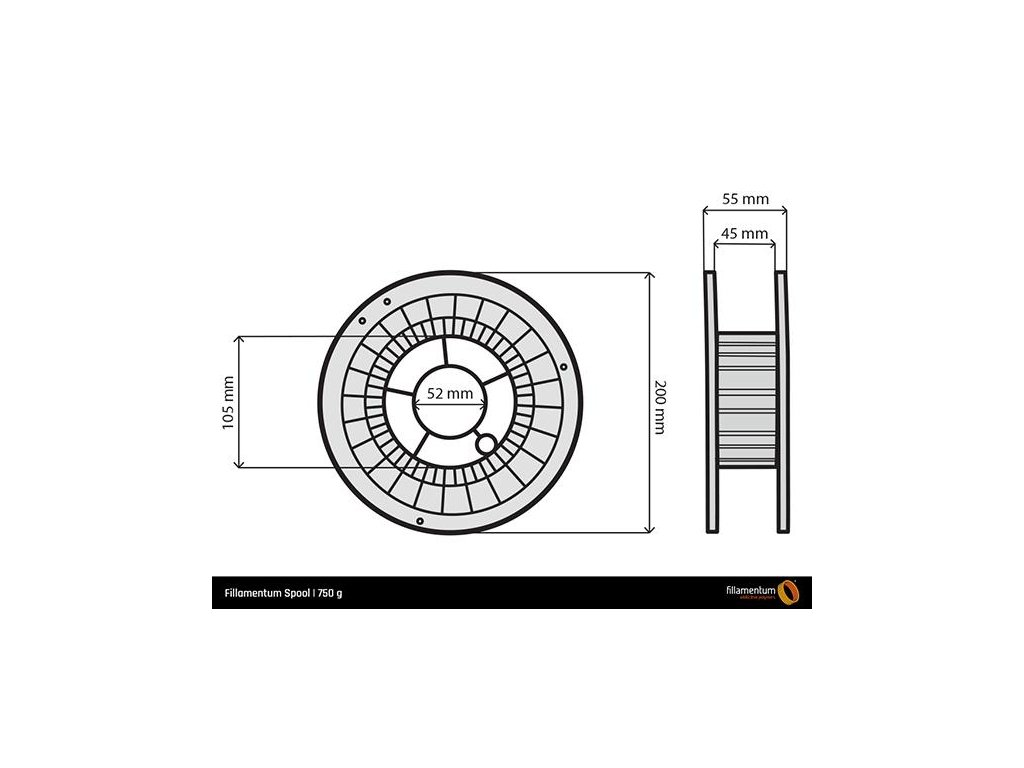

750 g of filament (+ 230 g spool)
|
| The length of the filament: |
310 m (1.75 mm, 750 g)
105 m (2.85 mm, 750 g)
|
| RAL | Pantone | HEX: |
|
Comparison of our styrenic polymers:
| PC/ABS | ASA Extrafill | ABS Extrafill | HIPS Extrafill | |
| Weather resistance | yellowing | UV stability | yellowing | yellowing |
| Tensile strength | 42 MPa | 40 MPa | 32 MPa | 26 MPa |
| Elongation at break | 7 % | 35 % | 20 % | 40 % |
| Hardness | ★★★★ | ★★ | ★★★ | ★★ |
| Impact resistance (notched) |
★★★ | ★★★ | ★★ | ★★ |
| Heat resistance (Vicat) |
113 °C | 94 °C | 96 °C | 88.5 °C |
The input material was carefully selected to achieve the best processability and final properties. Fillamentum’s products are always produced from the precisely specified type of material, with the highest stability across all the batches. The customers can rely on the best quality at any time they use our filament.
Additional parameters
| Category: | ASA |
|---|---|
| Warranty: | 2 years |
| Material: | ASA |
| Color: | yellow |
| Průměr struny: | 1.75 mm, 2.85 mm |
| Hmotnost návinu: | 0.75 kg |
| Materiál: | ASA |
| Odstín RAL: | N/A |
| Odstín PANTONE: | N/A |
| Doporučená teplota extruze: | 240 - 255°C |
| Doporučená teplota podložky: | 80 - 105°C |
| Tolerance: | max. ± 0.05 mm |
| Výrobce: | Fillamentum |
| Země původu: | Česká republika |
| Délka struny: | (1.75 mm, 750 g) is 305 m, (2.85 mm, 750 g) is 114 m |
