ABS Extrafill Luminous Orange

Code: 1905/1 1905/2 Choose variant

Not rated

€21,68 €17,92 excl. VAT

Choose variant

Delivery to: 08/01/2025 08/01/2025 Choose variant
diameter
weight
Chosen variant is not available. Reset selected parameters.

ABS

Commonly used for prototyping. ABS has good mechanical properties, impact resistance, and long-term usage.

Detailed information

Product detailed description

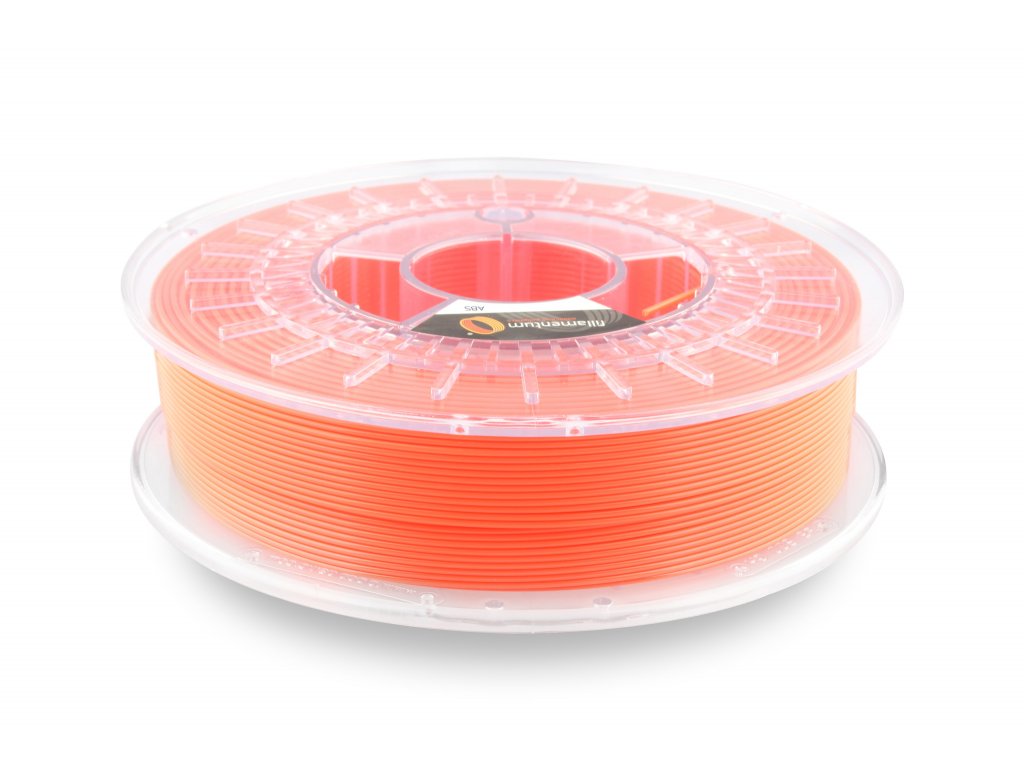

Fillamentum ABS Extrafill Luminous Orange

ABS Extrafill is a material that exhibits a high quality of printing even in tricky details with excellent lamination.

It's excellent for the production of the first functional samples before serial production. For functional prototyping, manufacturing tools and aids, but also for the production of goods for everyday use.

Features:

Smooth finish
High-temperature resistance
Tensile strength
Impact resistance
Chemical resistance against acids, alcohols, alkalis, oils, greases, ozone, and water
Low density
Resilience
Recyclable
Low moisture absorption
Environmentally friendly material
Safe to use in electrical and electronic equipment

Working temperature:	220–240 °C
Heated bed:	80–105 °C
Diameter:	1.75 mm and 2.85 mm
Diameter tolerance:	+/- 0.05 mm

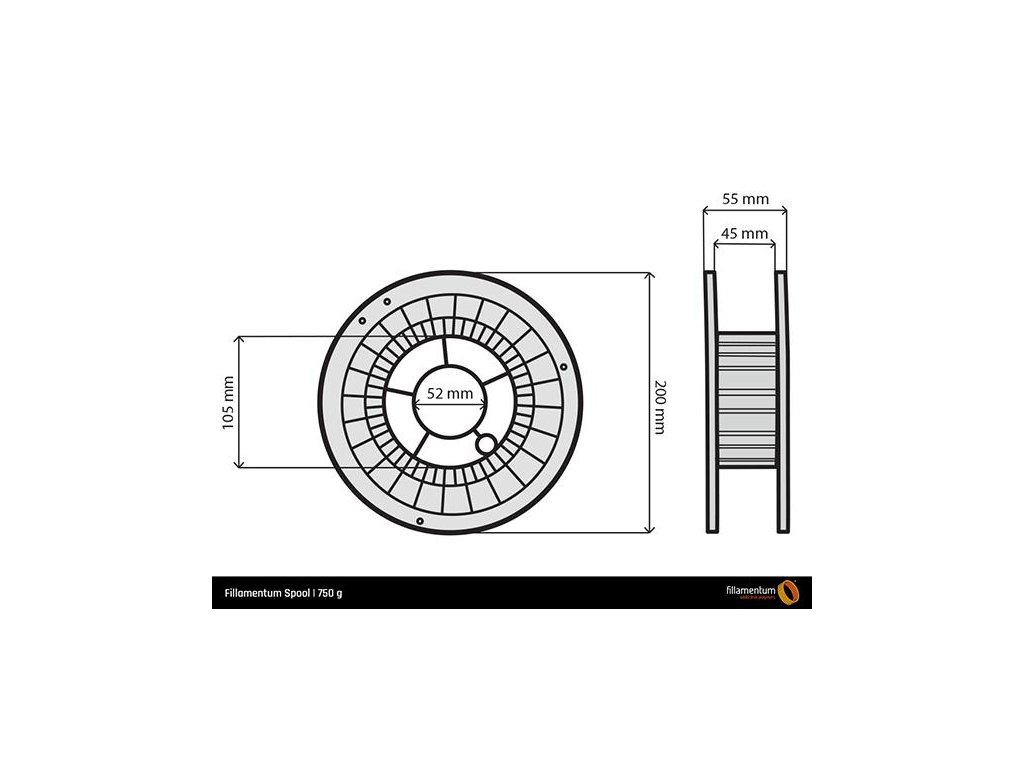

Weight:	750 g of filament (+ 230 g spool)
The length of the filament:	305 m (1.75 mm, 750 g) 114 m (2.85 mm, 750 g)
RAL \| Pantone \| HEX:	5013 \| N/A \| N/A

Comparison of our styrenic polymers:

	PC/ABS	ASA Extrafill	ABS Extrafill	HIPS Extrafill
Weather resistance	yellowing	UV stability	yellowing	yellowing
Tensile strength	42 MPa	40 MPa	32 MPa	26 MPa
Elongation at break	7 %	35 %	20 %	40 %
Hardness	★★★★	★★	★★★	★★
Impact resistance (notched)	★★★	★★★	★★	★★
Heat resistance (Vicat)	113 °C	94 °C	96 °C	88.5 °C

The input material was carefully selected to achieve the best processability and final properties. Fillamentum’s products are always produced from the precisely specified type of material, with the highest stability across all the batches. The customers can rely on the best quality at any time they use our filament.

rohs

Additional parameters

Category:	ABS
Warranty:	2 years
Material:	ABS
Color:	orange
Průměr struny:	1.75 mm, 2.85 mm
Hmotnost návinu:	0.75 kg
materiál:	ABS
Odstín RAL:	2005
Odstín PANTONE:	P1788 2X
Doporučená teplota extruze:	220 - 240°C
Doporučená teplota podložky:	80 - 105°C
Tolerance:	max. ± 0.05 mm
Výrobce:	Fillamentum
Země původu:	Česká republika
