ABS Extrafill Cobalt Blue
Code: 1893/1 1893/2 Choose variantRelated products
Product detailed description

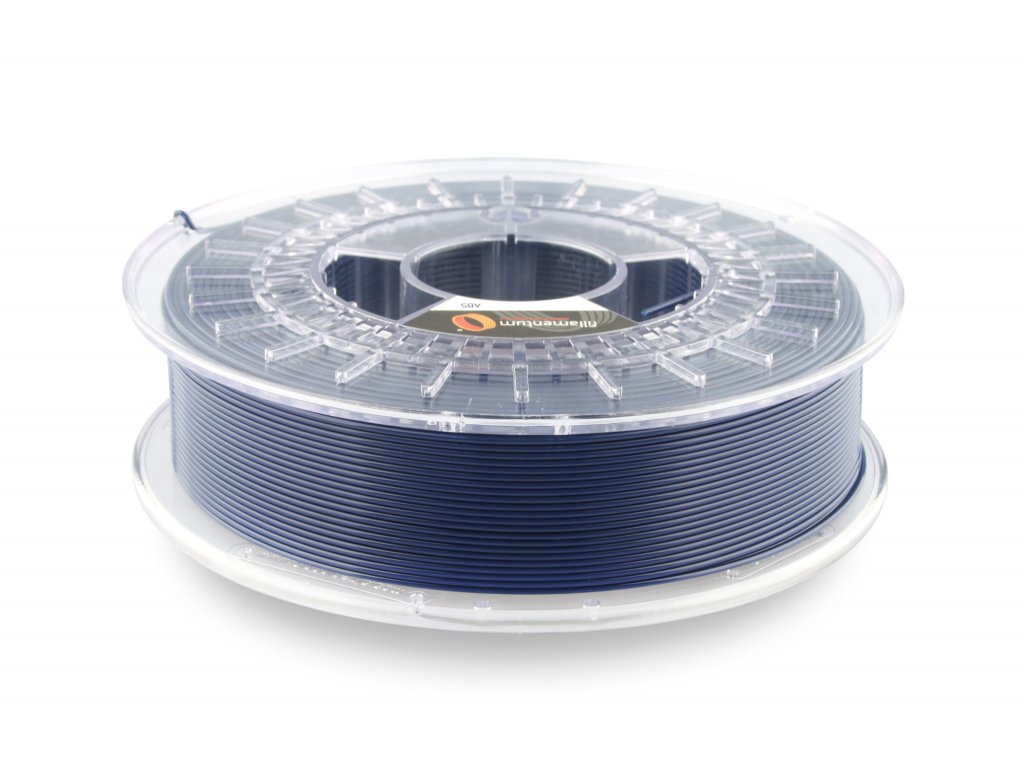

Fillamentum ABS Extrafill Cobalt Blue
ABS Extrafill is a material that exhibits a high quality of printing even in tricky details with excellent lamination.
It's excellent for the production of the first functional samples before serial production. For functional prototyping, manufacturing tools and aids, but also for the production of goods for everyday use.
Features:
- Smooth finish
- High-temperature resistance
- Tensile strength
- Impact resistance
- Chemical resistance against acids, alcohols, alkalis, oils, greases, ozone, and water
- Low density
- Resilience
- Recyclable
- Low moisture absorption
- Environmentally friendly material
- Safe to use in electrical and electronic equipment
| Working temperature: | 220–240 °C |
| Heated bed: | 80–105 °C |
| Diameter: | 1.75 mm and 2.85 mm |
| Diameter tolerance: | +/- 0.05 mm |
| Weight: |

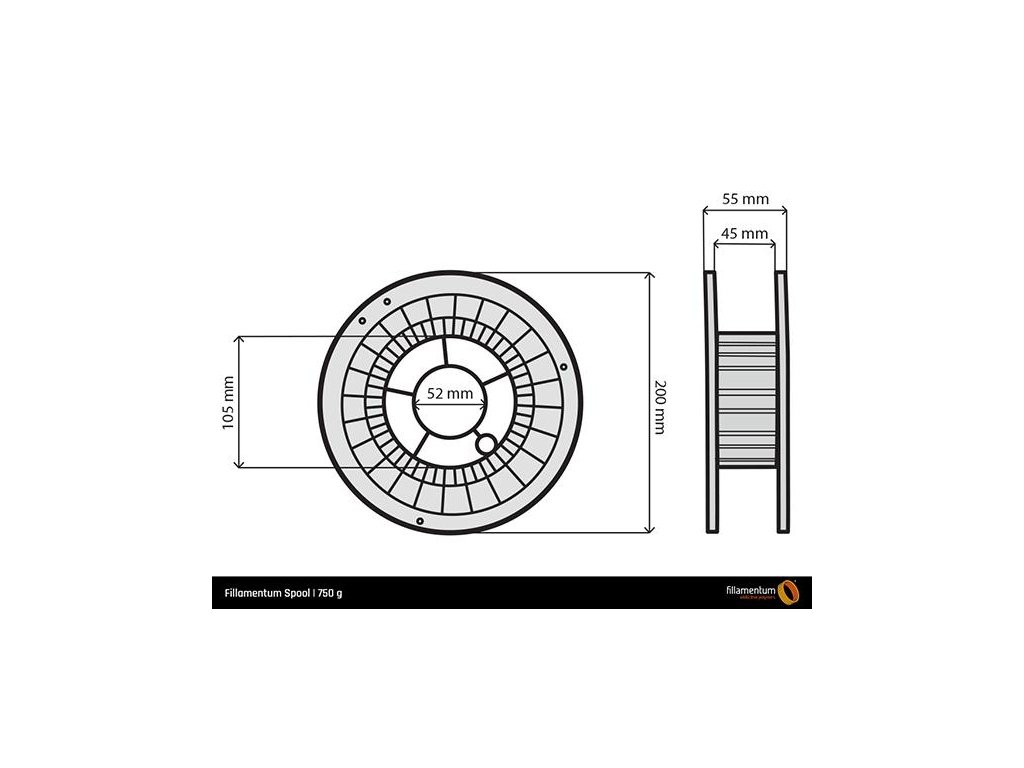

750 g of filament (+ 230 g spool)
|
| The length of the filament: |
305 m (1.75 mm, 750 g)
114 m (2.85 mm, 750 g)
|
| RAL | Pantone | HEX: |
5013 | N/A | N/A
|
Comparison of our styrenic polymers:
| PC/ABS | ASA Extrafill | ABS Extrafill | HIPS Extrafill | |
| Weather resistance | yellowing | UV stability | yellowing | yellowing |
| Tensile strength | 42 MPa | 40 MPa | 32 MPa | 26 MPa |
| Elongation at break | 7 % | 35 % | 20 % | 40 % |
| Hardness | ★★★★ | ★★ | ★★★ | ★★ |
| Impact resistance (notched) |
★★★ | ★★★ | ★★ | ★★ |
| Heat resistance (Vicat) |
113 °C | 94 °C | 96 °C | 88.5 °C |
The input material was carefully selected to achieve the best processability and final properties. Fillamentum’s products are always produced from the precisely specified type of material, with the highest stability across all the batches. The customers can rely on the best quality at any time they use our filament.
Additional parameters
| Category: | ABS |
|---|---|
| Warranty: | 2 years |
| Material: | ABS |
| Color: | blue |
| Průměr struny: | 1.75 mm, 2.85 mm |
| Hmotnost návinu: | 0.75 kg |
| materiál: | ABS |
| Odstín RAL: | 5013 |
| Odstín PANTONE: | N/A |
| Doporučená teplota extruze: | 220 - 240°C |
| Doporučená teplota podložky: | 80 - 105°C |
| Tolerance: | +/- 0,05 mm |
| Výrobce: | Fillamentum |
| Země původu: | Česká republika |
